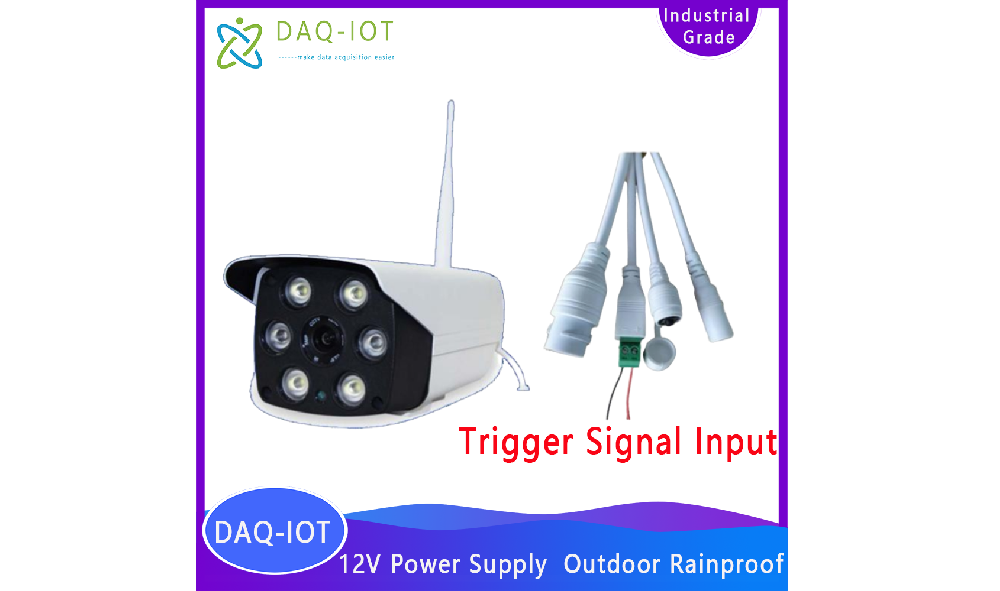

The SC-GP-CAMIO is a wireless camera based on LAN or WiFi, featuring switch signal relay-triggered timed photography and video capture with FTP and email photo upload, developed by Shanghai Data Acquisition IoT Technology Co., Ltd. It supports timed snapshots and event-triggered snapshots, making it widely applicable for instrument reading capture and recognition, as well as photo capture and video monitoring in agriculture, cultural relics, geotechnical, hydrology, and water conservancy fields.

This product supports network access via WiFi or Ethernet, timed photography, and uploading photos to a specified FTP Server or storing them on an SD card. When paired with a WiFi wireless network card, it can be used in outdoor environments without WiFi coverage.

1 Service Philosophy

Our company in Zhengzhou guarantees:

You are purchasing not only a product but also comprehensive and attentive technical support services.

We provide free remote guidance and remote configuration and debugging services, transmitting data to the customer-designated server.

Free IoT solution consulting services are available!

2 Product Features and Specifications

2.1 Camera Parameters and Selection

Resolution: options of 2MP, 3MP, and 5MP; default is 2MP.

Lens: 2.8mm / 4mm / 6mm

Lens Specifications	2.8mm	4mm	6mm
Monitoring Angle	90°	80°	70°
Monitoring Distance	0~5m	0~10m	6~20m

Memory Card Function: Supported

Power Supply: 12V DC

Weight: 0.35 kg

2.2 Electrical Characteristics

Power Supply Mode: 12V DC or Battery Powered

( Power Interface: DC5.5×2.1 mm Female Socket, Center Positive, Outer Negative )

2.3 Communication****Characteristics

Default Network Mode: Ethernet/WiFi

Image Upload: FTP Server

Antenna Type: Rubber Duck External Antenna

Material: PC Plastic (Housing)

Main Protection Rating: IP65

Dimensions: 185 mm × 85 mm × 80 mm

2.4 Operating****Environment

Ambient Temperature: -30°C to 70°C, Humidity: 0–95% (Non-Condensing)

3 Application Cases

❓ Frequently Asked Questions (FAQ)

1. What is an IO trigger industrial camera used for?

It is used for automatic image capture triggered by relay or IO signals in industrial automation and monitoring systems.

---

2. Does the camera support remote image upload?

Yes. The camera supports FTP upload and Email notification for remote image transmission and alarm reporting.

---

3. Can the camera work outdoors?

Yes. It features a waterproof industrial enclosure suitable for outdoor and harsh industrial environments.

---

4. Does it support low-light or night monitoring?

Yes. The built-in IR fill light allows clear image capture in dark or low-light environments.

---

5. Can it integrate with PLC or industrial control systems?

Yes. The camera supports IO trigger input and can work with PLCs, relays, and industrial automation systems.

---

6. What happens when a trigger signal is received?

The camera automatically captures images and uploads them via FTP or Email according to preset configurations.

---

7. Is the camera suitable for long-term continuous operation?

Yes. It is designed for stable 24/7 industrial monitoring applications.

---

8. What industries commonly use this camera?

It is widely used in factories, power systems, smart manufacturing, remote infrastructure monitoring, and industrial automation projects.

---
