XX New Energy PLC Equipment Acquisition Project Case
New Energy PLC Equipment Acquisition Project Case
1. Project Background
A leading new energy enterprise, to fully implement high-quality development requirements and its industrial-strength-province strategy, is promoting manufacturing digital transformation, driven by industrial technology innovation, to accelerate new industrialization.
2. Project Requirements and On-Site Survey
Acquire equipment process parameters and build a digital-twin 3D visualization platform to display workshop conditions in real time.
Plant situation:
Equipment list:
| No. | Equipment | System | Brand | Model | Interface | Authorization required |
|---|---|---|---|---|---|---|
| 1 | Kiln | PC | Other | PC | RJ45 | No |
| 2 | MVR | PLC | Siemens | S7-1500 | RJ45 | No |
| 3 | Three-in-one mixer | PLC | Siemens | S7-1200 | RJ45 | No |
| 4 | Press | PLC | Siemens | S7-300 | RS232 | No |

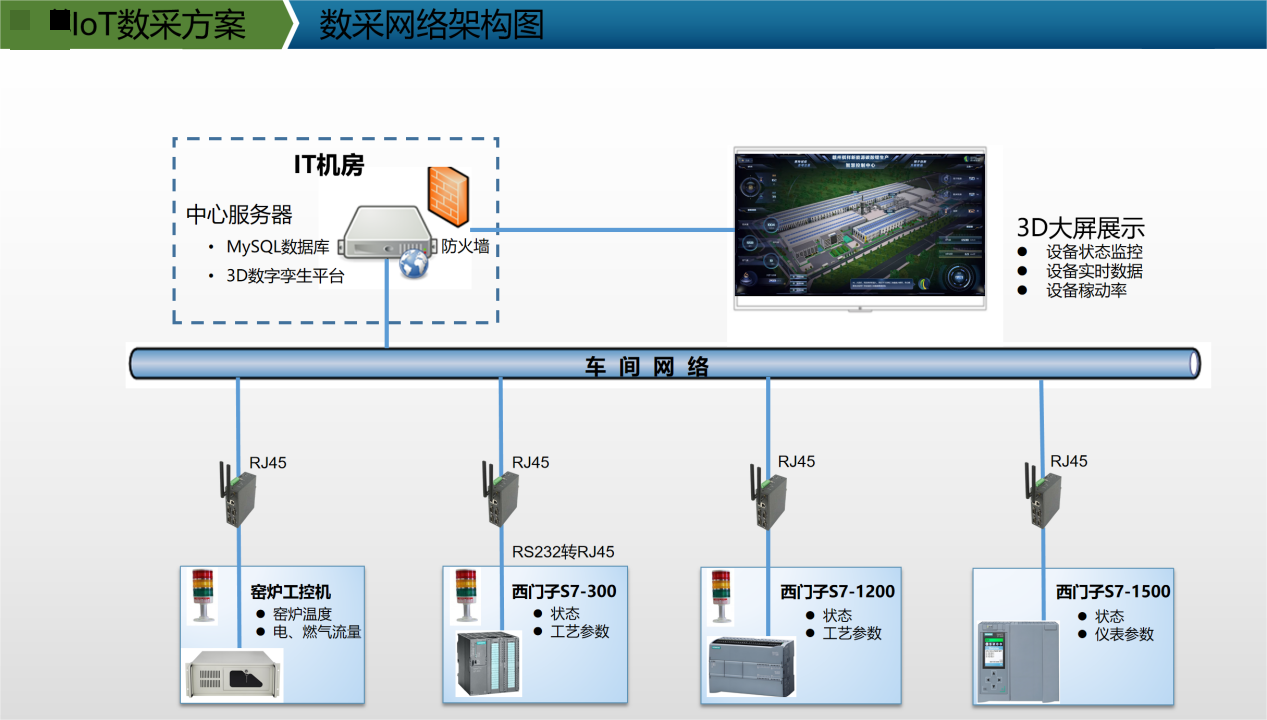

3. Data Acquisition Architecture
Through smart gateways, data from the four device types (kiln, press, MVR, three-in-one mixer) is acquired to a central server and stored in a MySQL database, then displayed through a 3D digital-twin platform.
4. On-Site Implementation

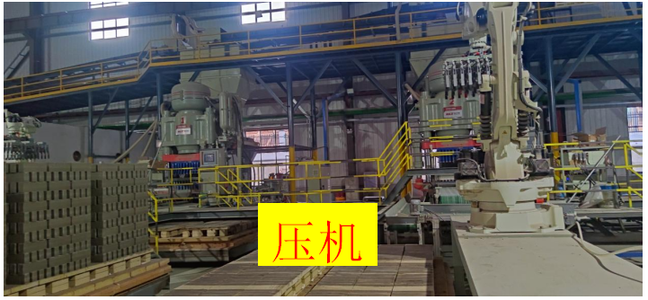

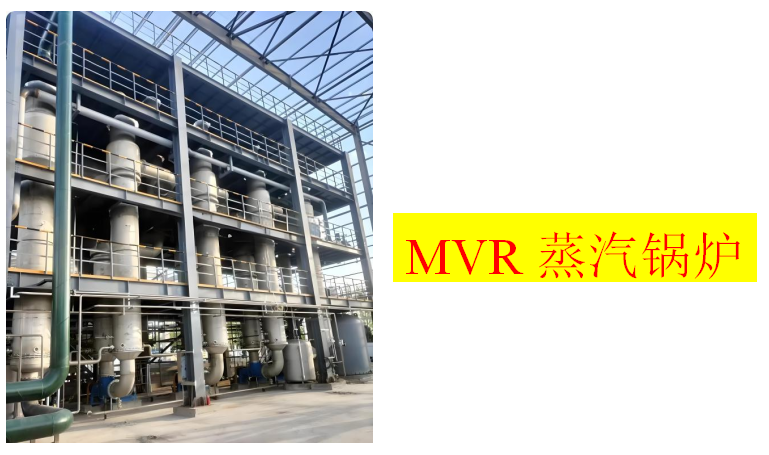

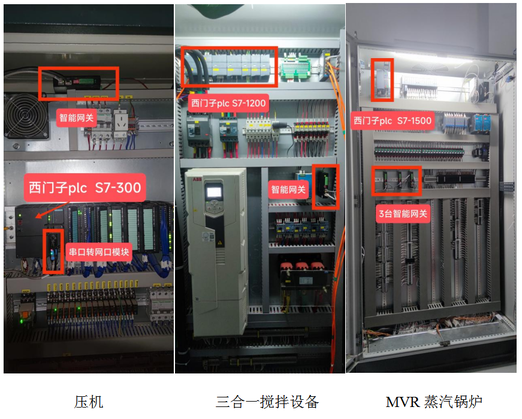

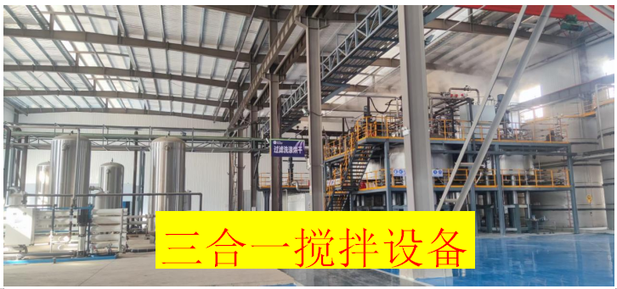

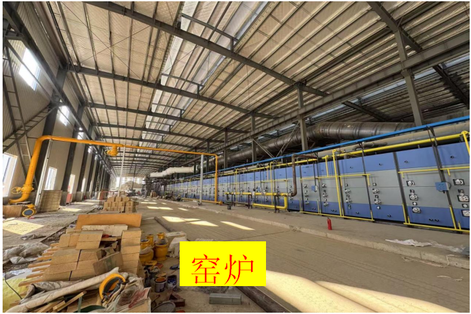

Press: the controller is a Siemens S7-300 with built-in serial communication; a serial-to-Ethernet module is added and connected to the smart gateway by network cable for data acquisition. Three-in-one mixer: the controller is a Siemens S7-1200; the PLC is accessed directly through the switch in the control cabinet for data acquisition. MVR steam boiler: the controller is a Siemens S7-1500; the PLC is accessed directly through the switch in the control cabinet. Kiln: the controller is an industrial PC, integrated with the smart gateway through a software protocol for data acquisition.
5. Data Acquisition, Storage and Display

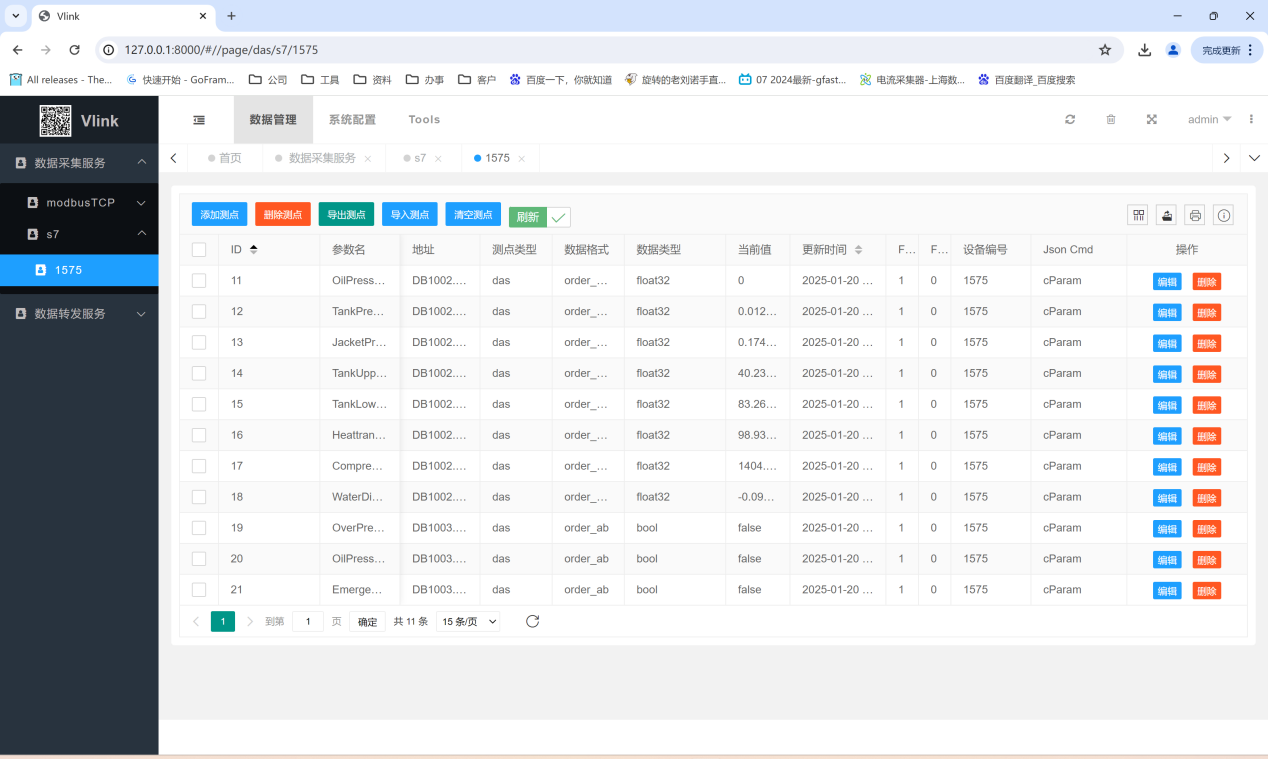

- Gateway acquires PLC data

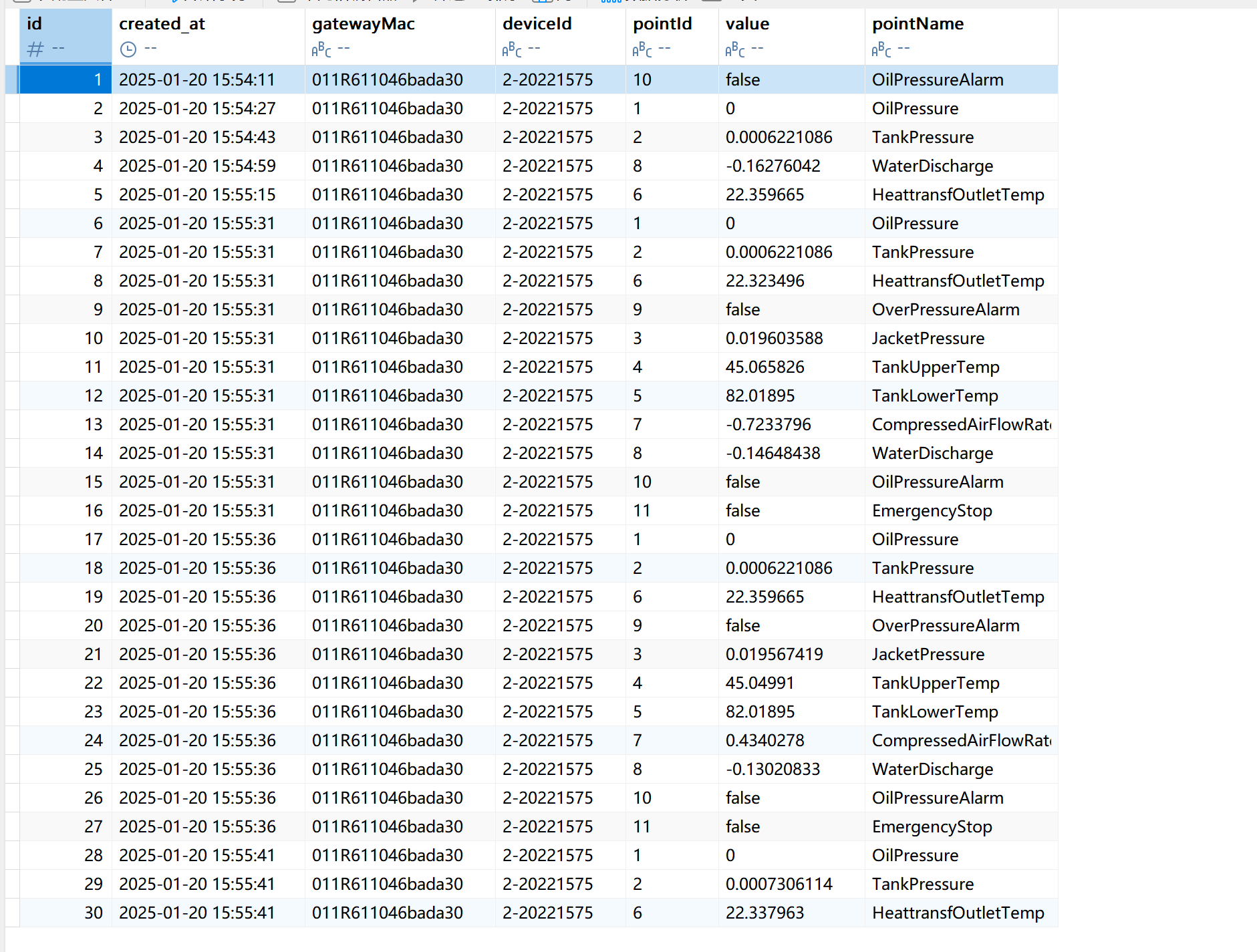

- Data written to MySQL database

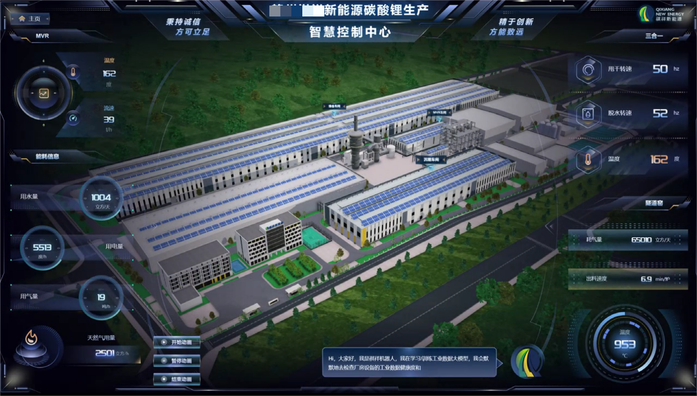

- 3D large-screen system displays data
6. Equipment Connection Status
| No. | Equipment | System | Brand | Model | Interface | Acquisition | Connected |
|---|---|---|---|---|---|---|---|
| 1 | Kiln | PC | Other | PC | RJ45 | Wired | Yes |
| 2 | MVR | PLC | Siemens | S7-1500 | RJ45 | Wired | Yes |
| 3 | Three-in-one mixer | PLC | Siemens | S7-1200 | RJ45 | Wired | Yes |
| 4 | Press | PLC | Siemens | S7-300 | RS232 | Wired | Yes |
