Product Details

1 Product Overview

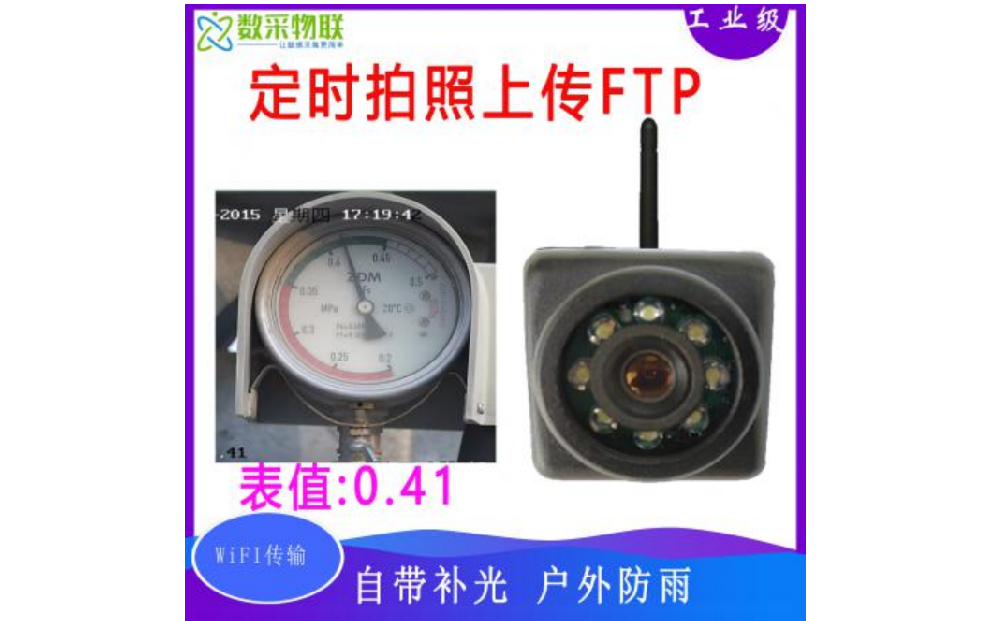

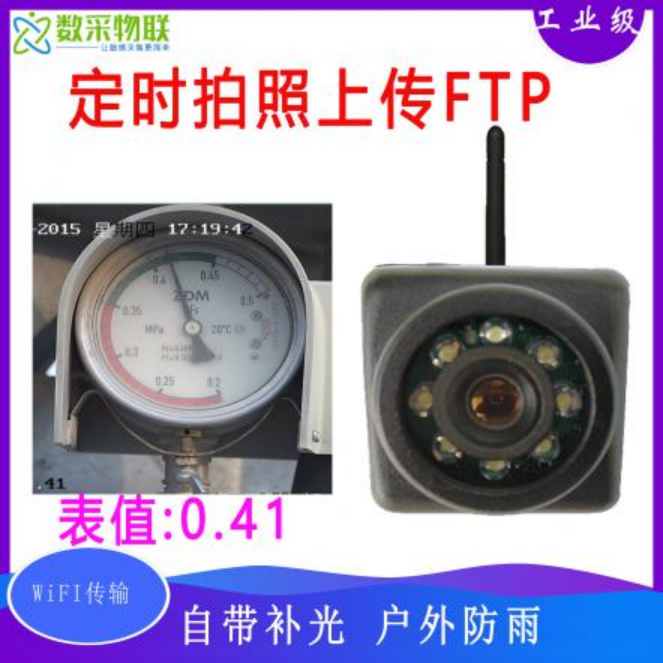

The MV-CS050-L16 5-megapixel high-definition color camera is a 4G or Wi-Fi wireless camera for timed photography, snapshot video recording and FTP photo upload. It has a built-in white-light source and is widely used for capturing and recognizing readings on instruments and meters, as well as for photo capture and video monitoring in cultural-relic, geotechnical, hydrological and water-conservancy applications.

The product connects to the network over Wi-Fi, 4G or Ethernet, takes photos on a schedule, and uploads them to a designated FTP server or stores them on an SD card. With a 4G wireless module it can be used outdoors where no Wi-Fi network is available.

3 Product Parameters

3.1 Camera Parameters and Selection

Resolution: 2MP, 3MP or 5MP available, 2MP by default

Lens: 2.8mm / 4mm / 6mm

Lens	2.8mm	4mm	6mm
Viewing angle	90 deg	80 deg	70 deg
Monitoring distance	0-5 m	0-10 m	6-20 m

Memory-card function: supported

Power supply: 12V DC

Weight: 0.35 kg

3.2 Electrical Characteristics

Power supply: 12V DC or battery

(Power connector: DC 5.5 x 2.1 mm female socket, center positive)

3.3 Communication Characteristics

Default network access: Ethernet / Wi-Fi, 4G

Image upload: FTP server

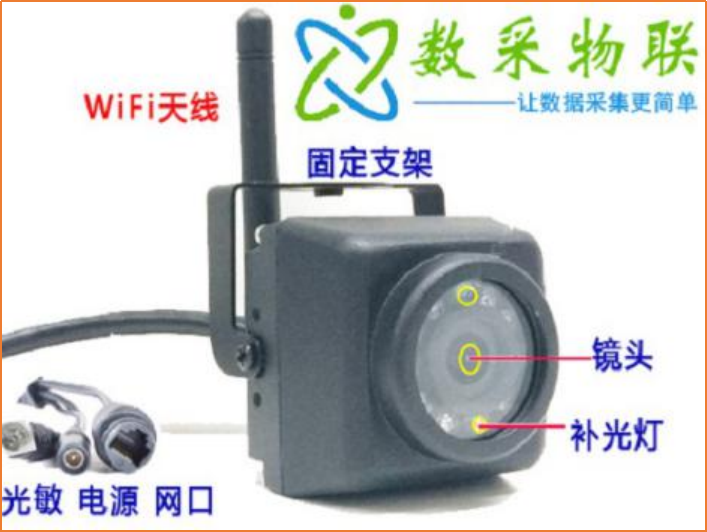

3.4 Structural Characteristics

Antenna type: external rubber-duck antenna

Material: PC plastic (enclosure)

Main body protection rating: IP65

Dimensions: 50 mm x 50 mm x 30 mm

3.5 Operating Environment

Ambient temperature -30 degC to 70 degC, humidity 0-95% (non-condensing)

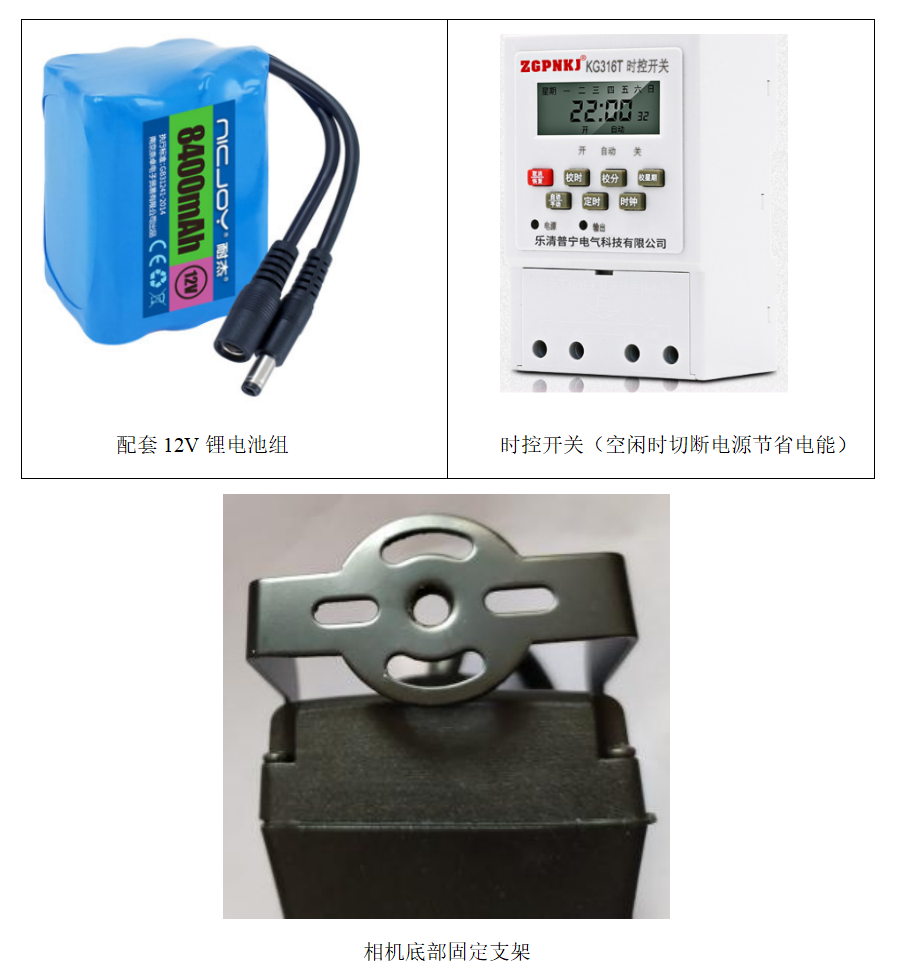

4 Accessories

5 Core Advantages

• Simple installation and fast deployment, helping IoT projects go live quickly
• Compact size
• Rainproof design for outdoor environments
• Built-in fill light for night photography
• Remote parameter configuration
