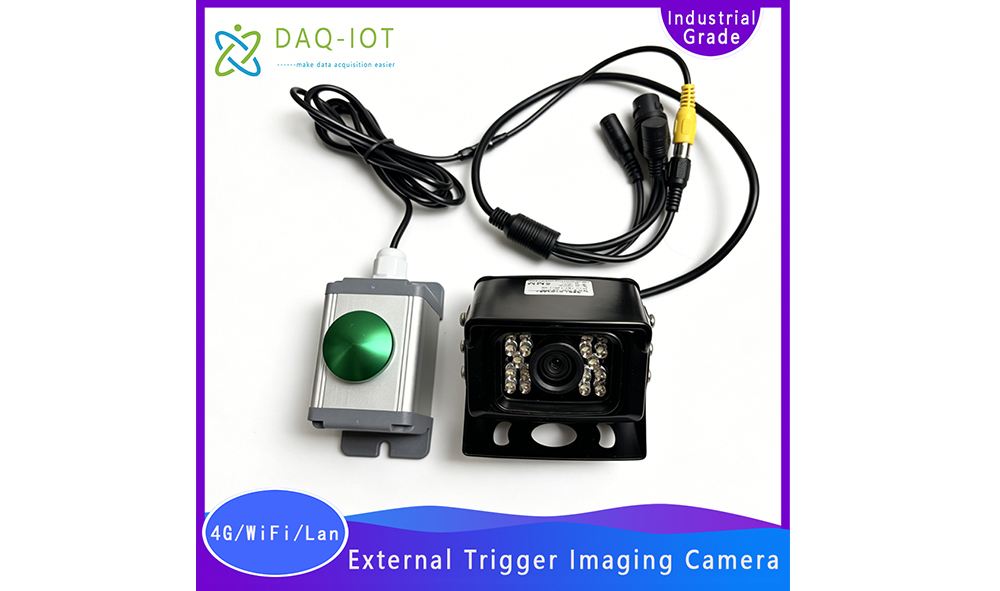

1 Product Overview****

2Service Philosophy

Our company in Zhengzhou guarantees:

You are purchasing not only a product but also comprehensive and attentive technical support services.

We provide free remote guidance and remote configuration and debugging services, transmitting data to the customer-designated server.

Free IoT solution consulting services are available!

3 Product Features and Specifications

3.1 Camera Parameters and Selection

Resolution: options of 2MP, 3MP, and 5MP; default is 2MP.

Lens: 2.8mm / 4mm / 6mm

Lens Specifications	2.8mm	4mm	6mm
Monitoring Angle	90°	80°	70°
Monitoring Distance	0~5m	0~10m	6~20m

Memory Card Function: Supported

Power Supply: 12V DC

Weight: 0.35 kg

3.2 Electrical Characteristics

Power Supply Mode: 12V DC or Battery Powered

( Power Interface: DC5.5×2.1 mm Female Socket, Center Positive, Outer Negative )

3.3 Communication****Characteristics

Default Network Mode: Ethernet/WiFi, 4G

Image Upload: FTP Server****

3.4Structural Features

Antenna Type: Rubber Duck External Antenna

Material: PC Plastic (Housing)

Main Protection Rating: IP65

Dimensions: 185 mm × 85 mm × 80 mm

3.5 Operating****Environment

Ambient Temperature: -30°C to 70°C, Humidity: 0–95% (Non-Condensing)

4 Core Product Advantages

• Simple installation and rapid deployment to facilitate quick implementation of IoT projects

• Compact size

• Rainproof design suitable for outdoor environments

• Built-in supplementary lighting suitable for nighttime photography

Supports remote parameter configuration

5 Timed Photo Upload Settings

Allows setting of any time interval to capture photos stored on the SD card or uploaded to the FTP Server.

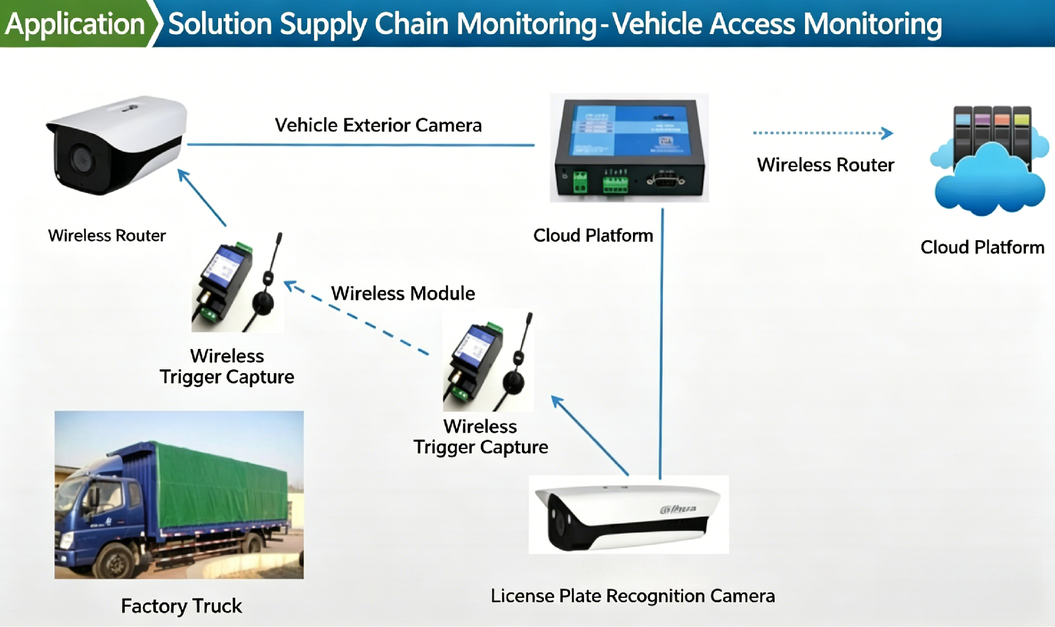

6 Application Cases

Factory Vehicle Access Monitoring

7 FAQ

Q1: What triggers the camera to capture images?

It supports external triggers such as sensors, PLC signals, relays, or system alarms.

Q2: Can it work in remote locations?

Yes, it supports 4G/WiFi communication and is designed for unmanned remote sites.

Q3: Does it support cloud storage?

Yes, it supports cloud upload via FTP, MQTT, or HTTP protocols.

Q4: Is it suitable for solar-powered systems?

Yes, it has a low-power design optimized for solar installations.

Q5: Can the cable length be customized?

Yes, cable length can be customized according to project requirements.
