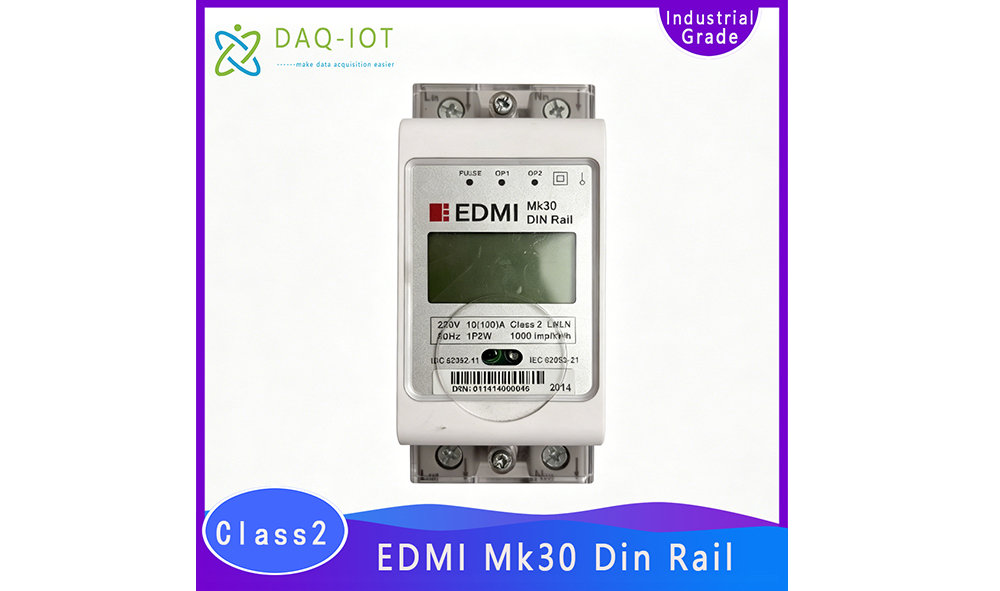

Mk30 Single-Phase (DIN Mounting) Technical Reference Manual
The Mk30 is a compact, single-phase electrical meter designed for accurate energy and power monitoring in residential, commercial, and industrial environments. Its DIN rail mounting ensures easy installation, and it supports multiple measurement parameters including active/reactive energy, voltage, current, and power factor.
Key Features
-
High Accuracy Measurement: Class 1 for active energy and Class 2 for reactive energy.
-
Multi-Parameter Monitoring: Active/Reactive/Apparent Power, Voltage, Current, Power Factor.
-
DIN Rail Mounting: Compact 35mm rail design for easy installation.
-
Optional Communication: RS485 Modbus RTU for smart grid and remote monitoring.
-
Pulse Output: Optional S0 standard for external data acquisition.
-
Reliable & Durable: Designed for harsh industrial and commercial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Mk30 |
| Type | Single-Phase Electrical Meter |
| Rated Voltage | 230V AC |
| Voltage Range | 0.8–1.2 × Un |
| Rated Current | 5A / 10A / 20A |
| Current Range | 0.1–1.2 × In |
| Frequency | 50/60Hz ±5% |
| Starting Current | ≤ 0.4% In |
| Active Energy Accuracy | Class 1 (IEC 62053-21) |
| Reactive Energy Accuracy | Class 2 (IEC 62053-23) |
| Communication Interface | RS485 Modbus RTU (optional) |
| Pulse Output | S0 standard (optional) |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | ≤95% RH, non-condensing |
| Enclosure Protection | IP20 |
| Mounting | DIN Rail 35mm |
| Dimensions | 90 × 52 × 65 mm |
| Weight | ~250g |
Advantages / Benefits
-
Accurate Energy Billing: Ensure precise measurement for billing and energy management.
-
Multi-Parameter Monitoring: Comprehensive power data collection in a single meter.
-
Easy Installation: DIN rail mounting simplifies deployment.
-
Smart Grid Ready: Optional RS485 allows integration with SCADA, BMS, or cloud platforms.
-
Durable & Reliable: Operates continuously in industrial and commercial environments.
-
Low Maintenance: Compact design reduces maintenance effort.
Applications
-
Residential and commercial energy monitoring
-
Industrial power management
-
Smart grid and utility monitoring
-
SCADA or IoT data acquisition integration
-
Energy efficiency optimization projects
FAQ
1. What is the accuracy class of Mk30?
Active energy: Class 1, Reactive energy: Class 2 according to IEC standards.
2. Can Mk30 be integrated into SCADA or IoT systems?
Yes, optional RS485 Modbus RTU communication allows seamless integration.
3. Is this meter suitable for harsh environments?
Yes, designed for -25°C to +55°C and IP20 protection.
4. What is the mounting type?
DIN rail 35mm standard mounting for easy installation.
5. Does Mk30 support pulse output?
Yes, it has optional S0 pulse output for external data acquisition.
