1 Product Overview

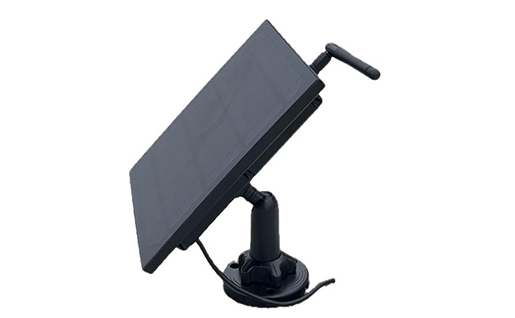

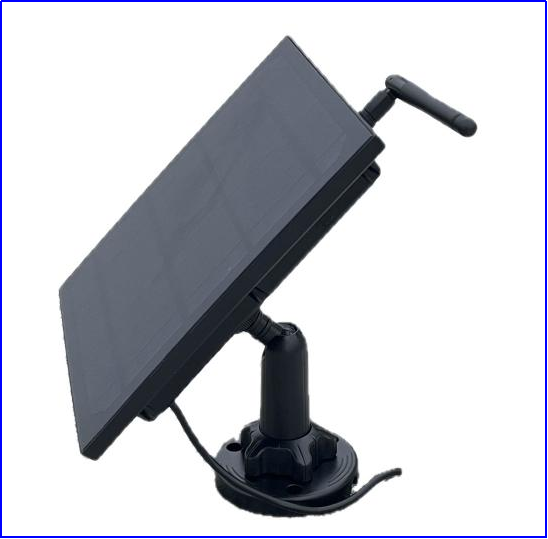

The DAQ-SP-X4G is a solar-powered RTU wireless collector from Shanghai Daq-IoT Technology. It supports a wide range of RS485 sensors and uses 4G wireless communication by default, enabling remote monitoring of RS485-based sensors and probes such as submersible liquid-level sensors, temperature and humidity sensors, illuminance sensors, wind speed and direction sensors, inclination sensors and electronic water gauges for outdoor scenarios.

The product has a built-in rechargeable lithium battery and is rainproof for outdoor use; a universal bracket makes outdoor installation easy. Its built-in 4G IoT SIM card connects directly to an IoT cloud platform, so data can be viewed on WeChat or a website. It suits any outdoor remote-monitoring scenario where mains power is inconvenient.

2 Ordering Specifications and Selection

Model	Description
DAQ-SP-TLL4G	Solar-powered 4G wireless liquid-level sensor
DAQ-SP-LR4G	Solar-powered 4G wireless irradiance meter
DAQ-SP-IL4G	Solar-powered 4G wireless inclination sensor
DAQ-SP-WSD4G	Solar-powered 4G wireless wind speed and direction monitor
DAQ-SP-IR4G	Solar-powered 4G wireless infrared meter reader
…	Other customized sensors

4 Product Parameters

4.1 Acquisition Characteristics

• Acquisition interface: RS485
• External output voltage: 5V/12V @ 1A

4.2 Electrical Characteristics

• Solar panel power: 4.2W
• Device power consumption: <= 3W (default)
• Battery capacity: 4Ah (expandable)

4.3 Communication Characteristics

4G network by default

Wi-Fi/LoRa and other communication methods can be customized

4.4 Structural Characteristics

• Overall host dimensions: 175 x 165 x 45 mm
• Protection rating: IP65

4.5 Storage Environment

• Temperature: -20 degC to 60 degC

5 Core Advantages

• Self-powered, using clean energy for “zero carbon”
• Simple installation and fast deployment, helping IoT projects go live quickly
• Custom registration and heartbeat packets for easy device identification on the platform
• Compatible with any IoT cloud platform or SCADA configuration software, with data-protocol integration provided
• Supports mainstream cloud platforms such as Alibaba Cloud, Baidu TianGong, OneNet and Tencent Cloud
• Supports multiple external sensors
• Remote parameter configuration and FOTA remote upgrade, minimizing on-site construction and maintenance costs

6 Communication Protocol

Data can be uploaded over mainstream methods including RS485, TCP, UDP, HTTP and MQTT, and the data format can be Modbus or JSON for integration with third-party platforms.

6.1 Data Reporting Protocol Parsing

Example of a JSON data message:

{
"tempeature": 18.5,     // temperature, degC
"wind": 4.2,            // wind speed, m/s
"liquid level": 8,      // liquid level depth, m
"illumination": 476,    // illuminance, Lux
"energy": 0,            // electricity consumption, kWh
"power": 0,             // power, W
"id": "861658062222974" // device ID
}

7 Application Cases

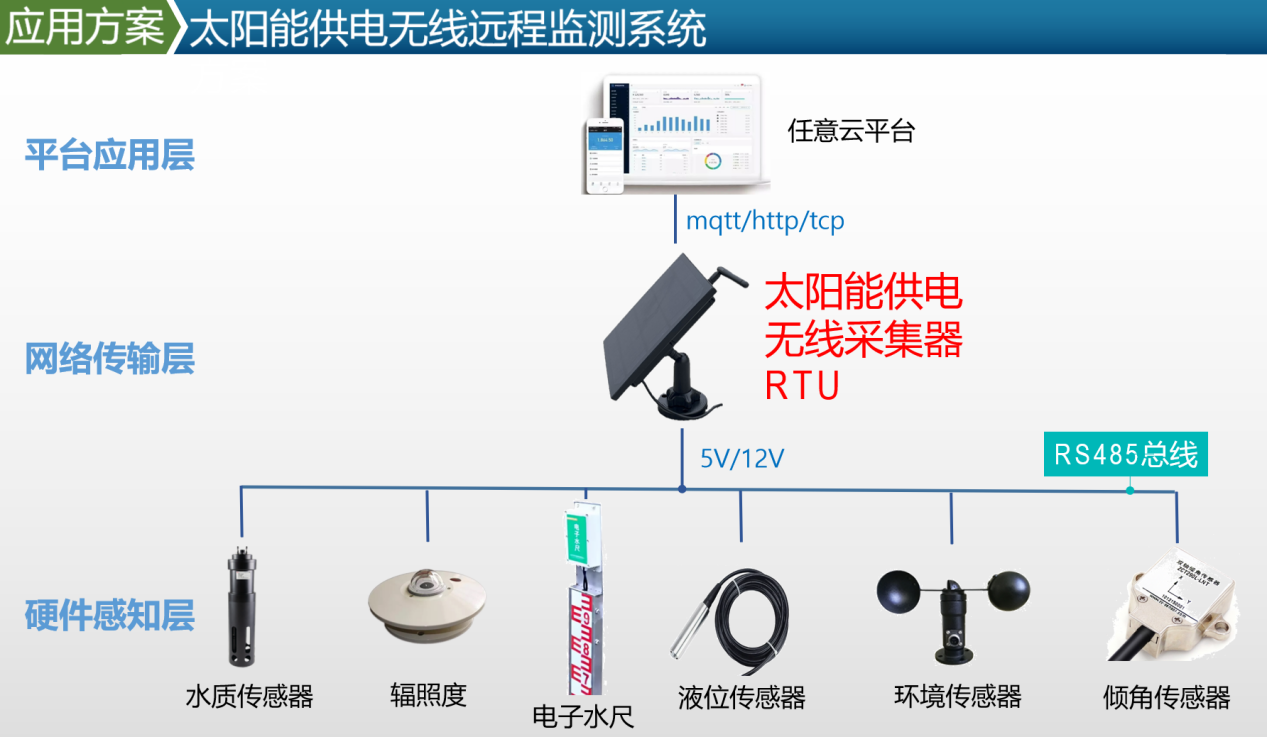

Application diagram

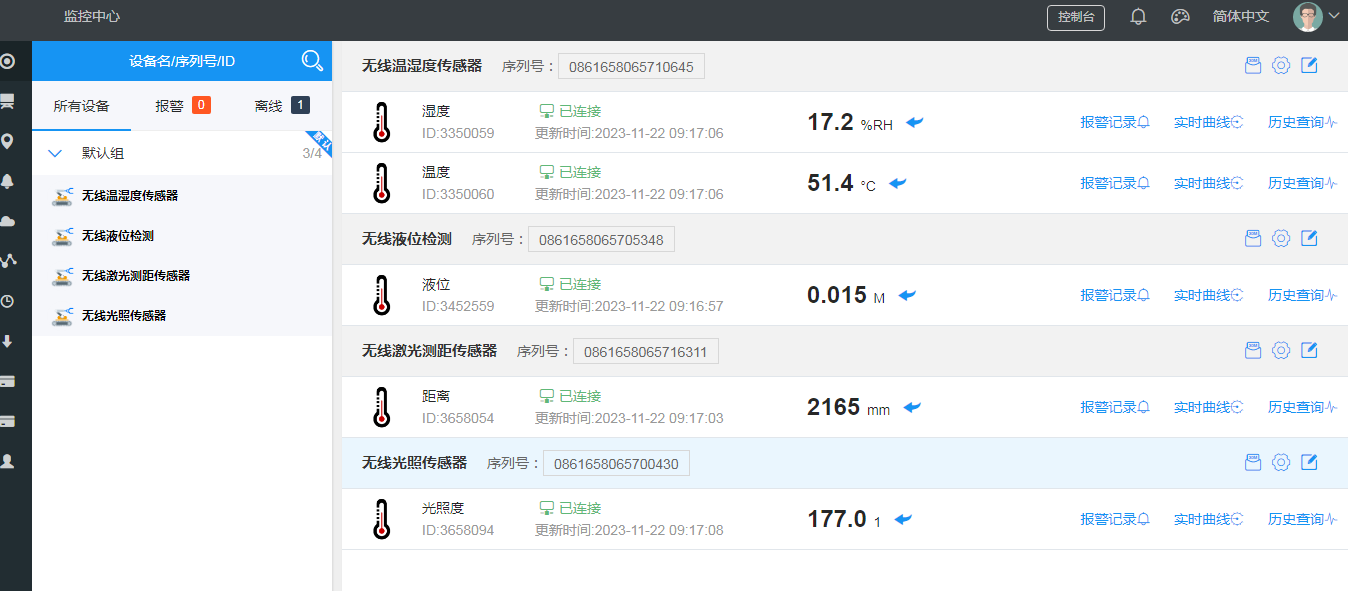

Example of data displayed on the platform web page
